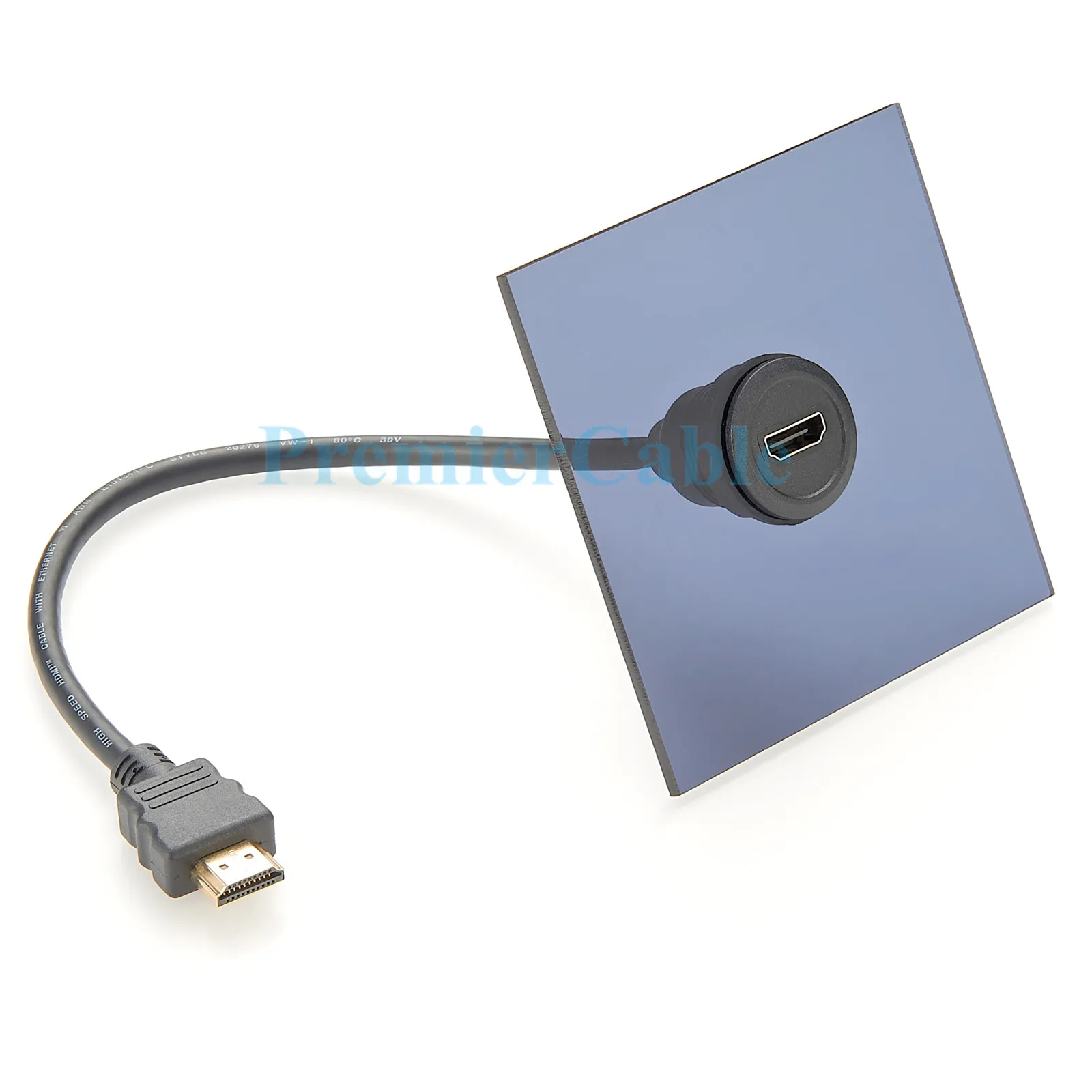

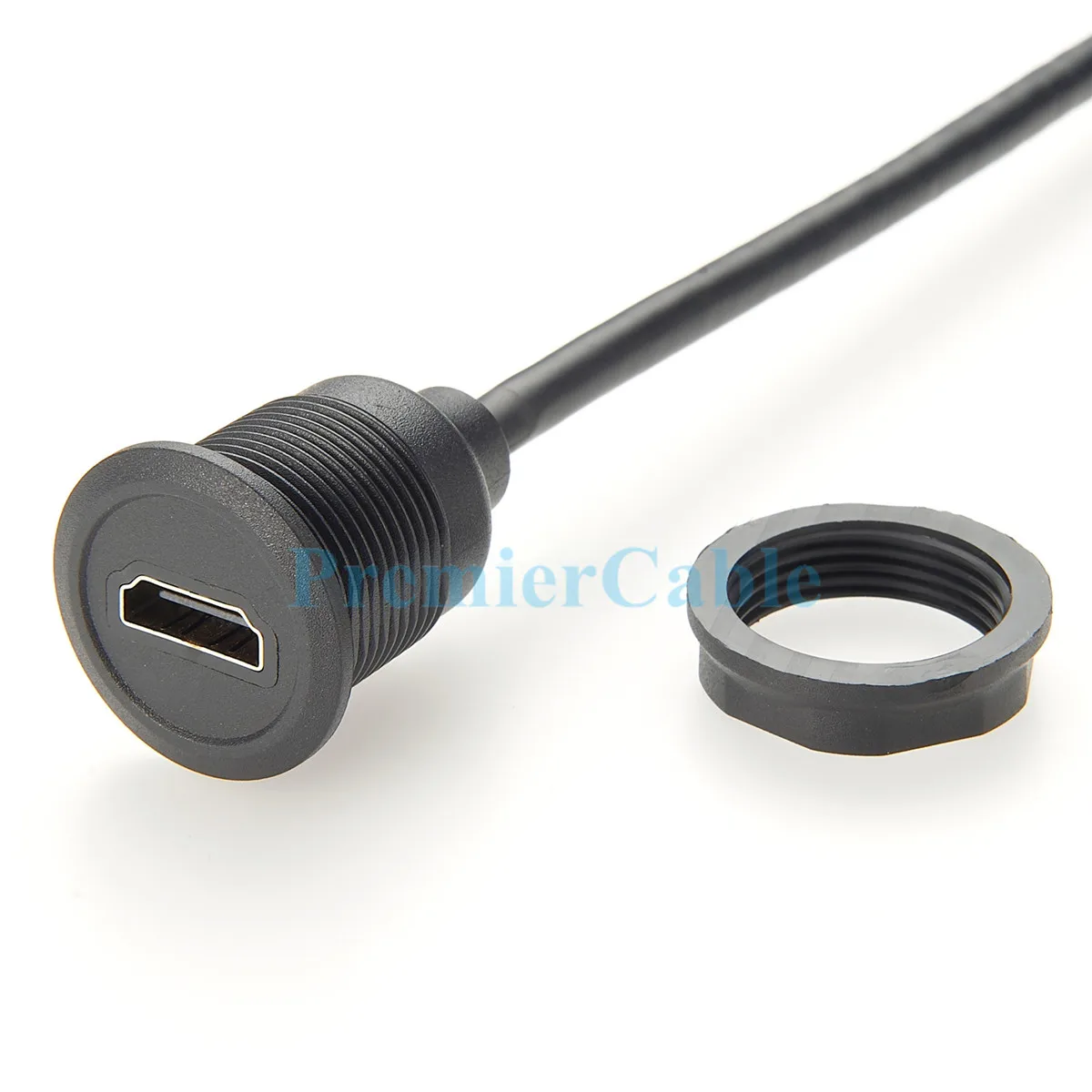

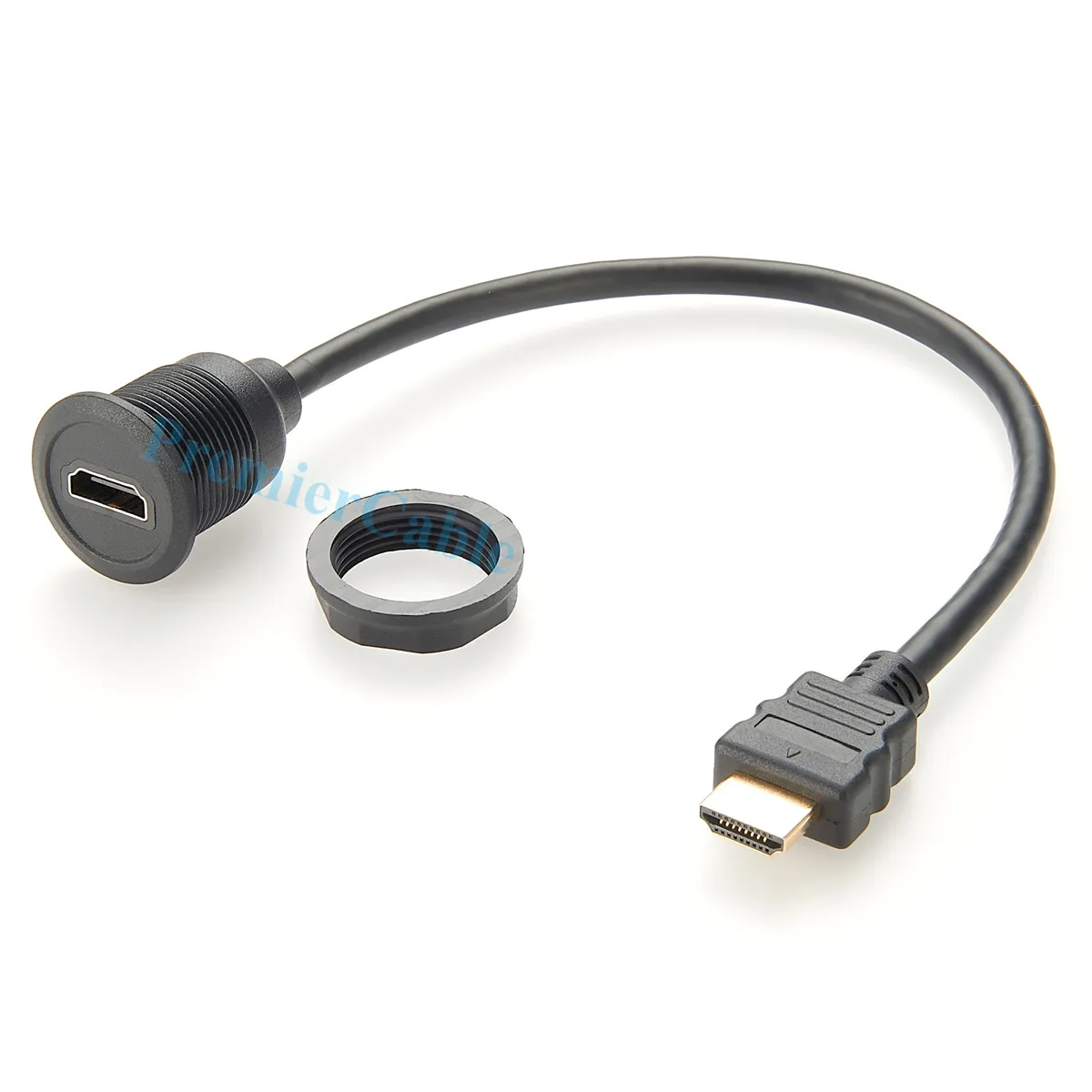

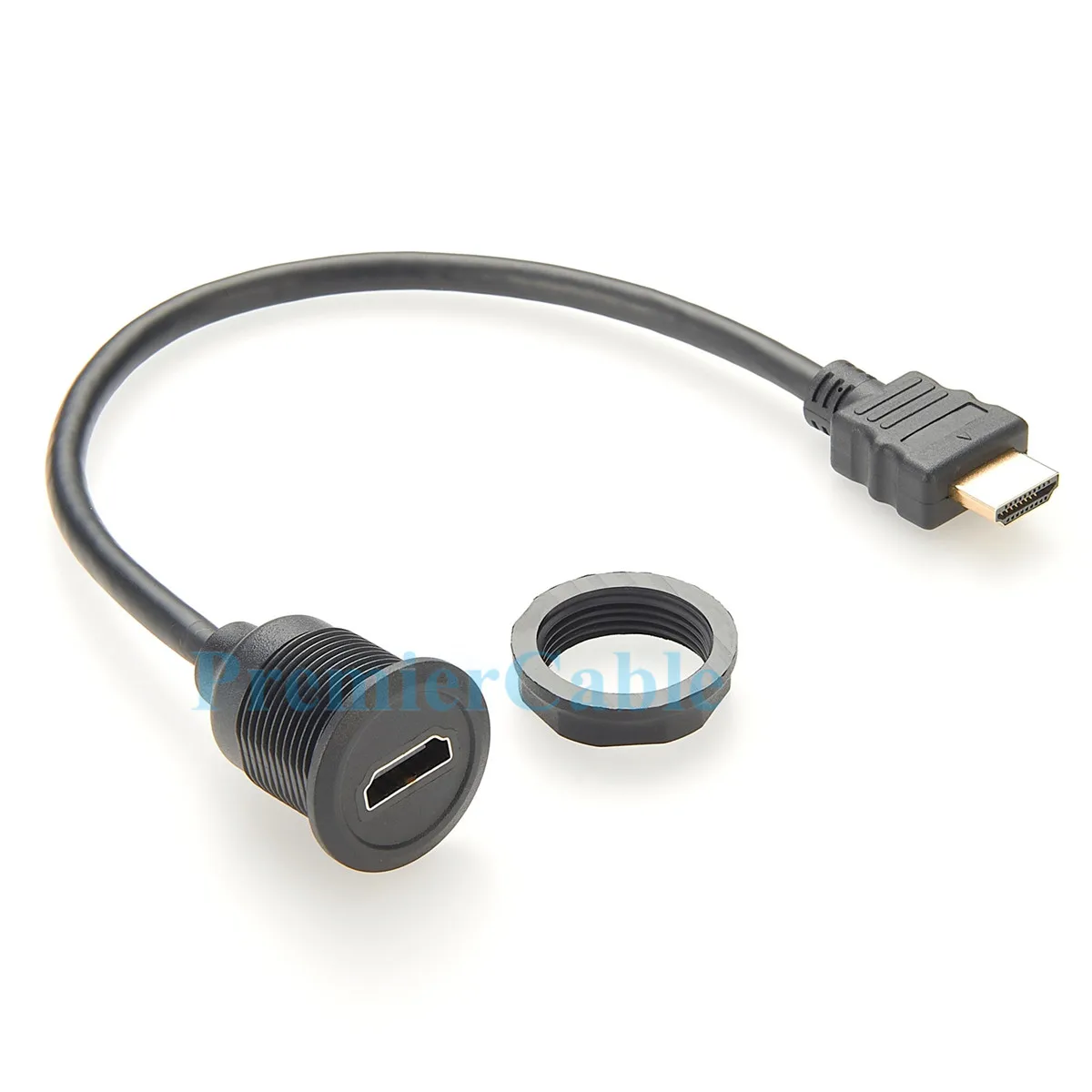

PCM-0486 round panel mount HDMI Supports high-definition (high-definition) video transmission, including 1080p, 2K ,60HZ and higher resolution.
Multi-channel audio: Supports multi-channel audio transmission, such as Dolby Digital, DTS and other high-quality audio formats.
Simple operation: No complex tools or expertise required, just drill a hole in the panel, insert the jack, and secure it with a nut.
Universal interface: HDMI is a standard audio and video interface, widely used in TVS, displays, projectors, game consoles and other equipment.
Hidden wiring: The cable can be hidden behind the panel to reduce the external exposure of the cable and improve the overall beauty.
Low latency: The cable is designed with low latency in mind for signal transmission and is suitable for applications that require a fast response.
Features:
Connector1:HDMI Female
Connector2:HDMIMale
Panel Cutout size: 25mm
2K,60HZ
RoHS compliant
Wire: UL20276 30AWG
Material:Pure copper core+PVC jacket
We can customize this cable in any length you require,please contact our customer service if necessary.
Various specifications are available
Product Display

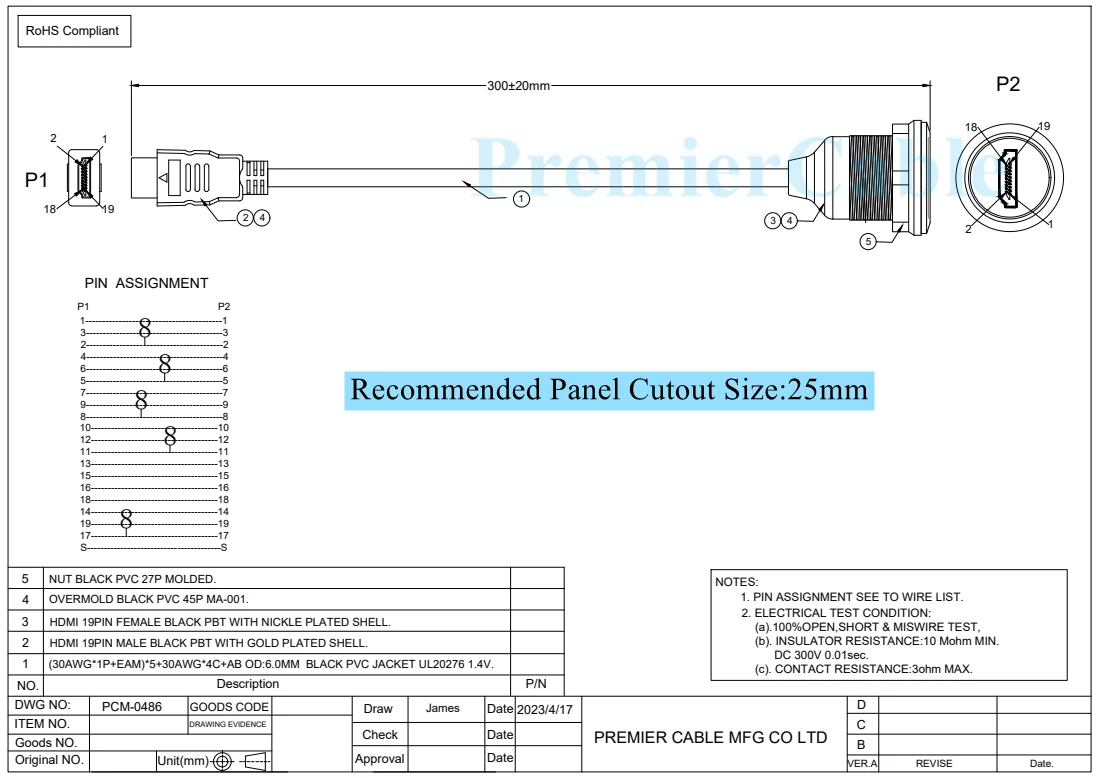

Please refer to the drawings below for size:
