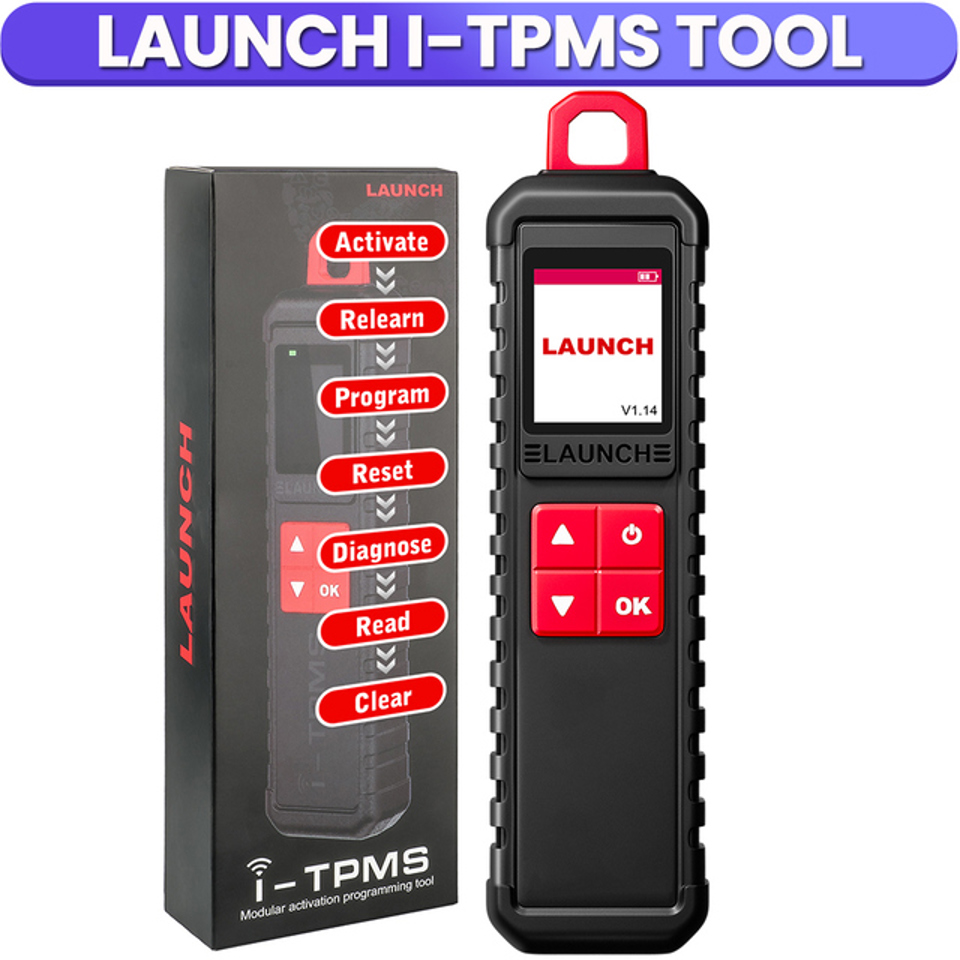

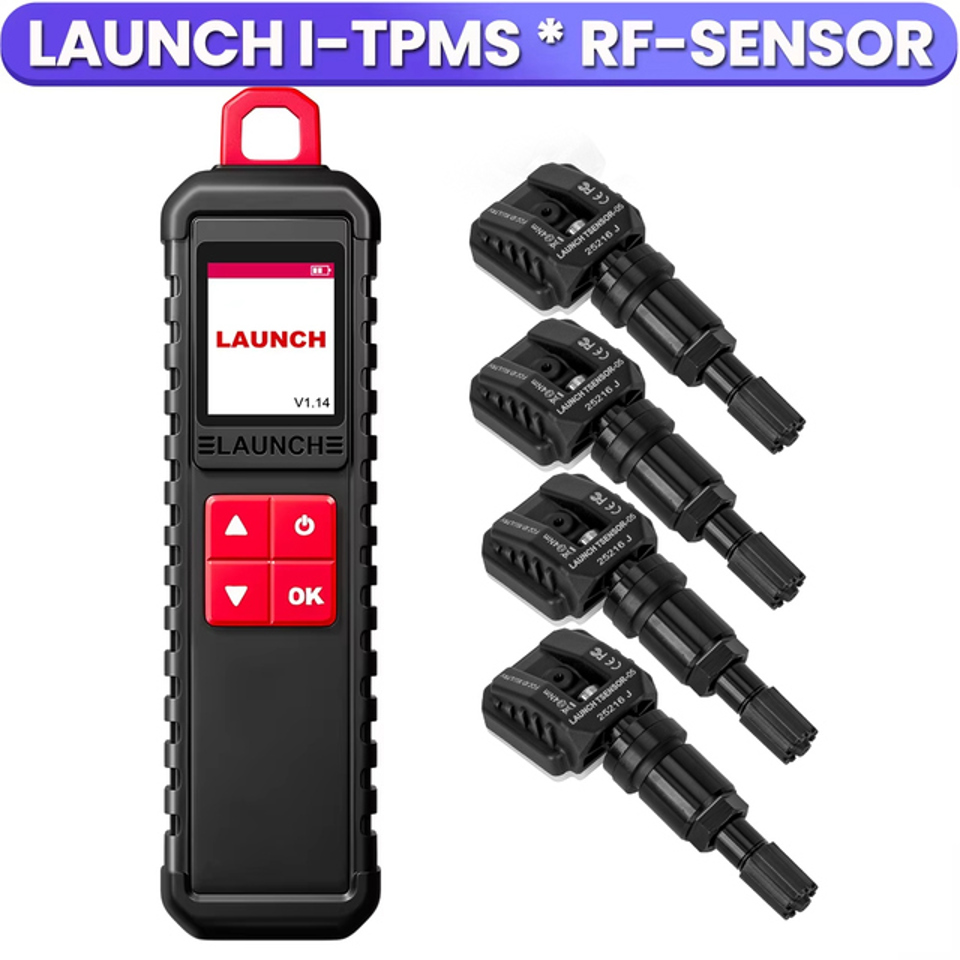

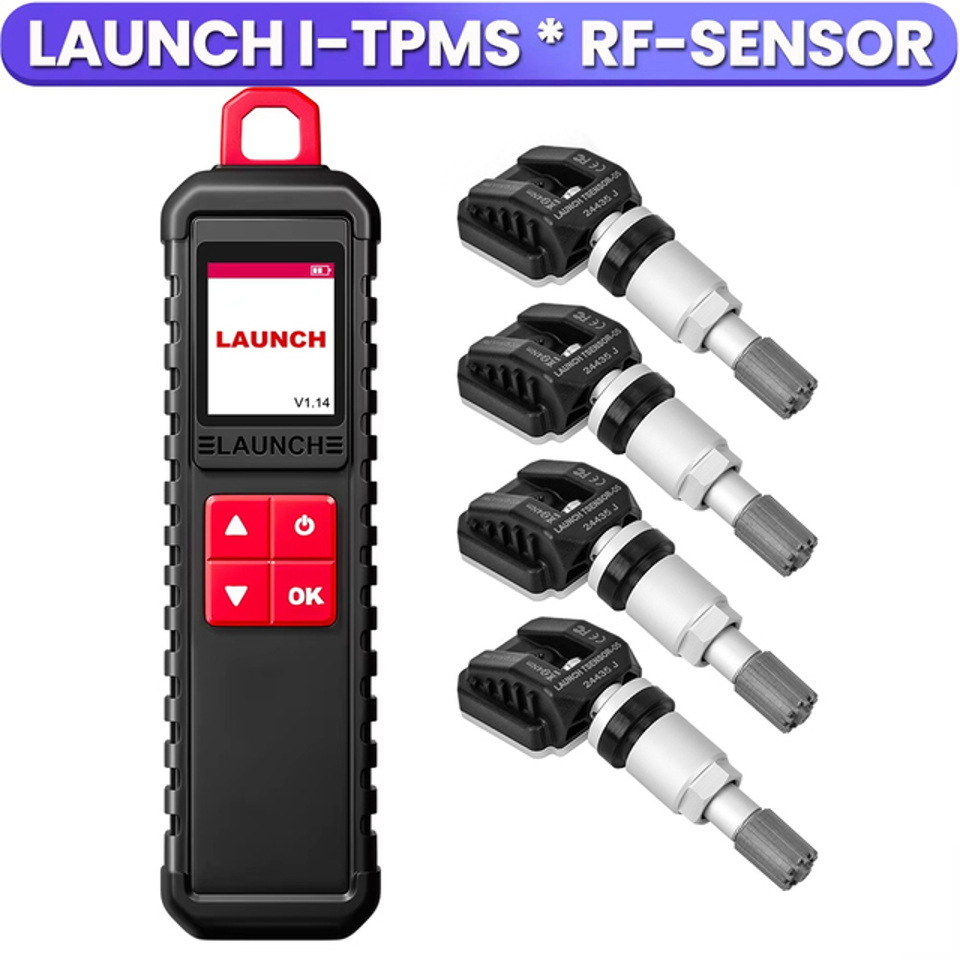

Активатор LAUNCH I-TPMS с батареями в комплекте, для активации и сопряжения датчиков 315МГц/433МГц

NOTICE

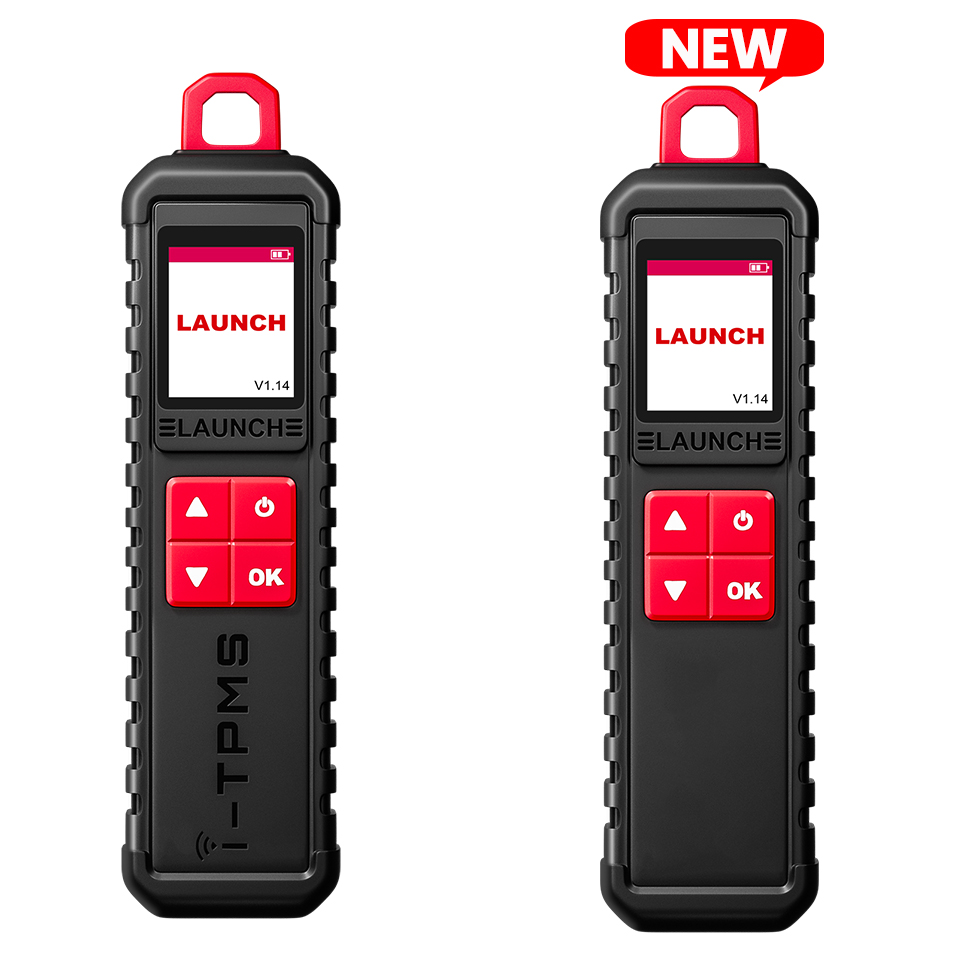

The I-TPMS tool has 2 appearance designs and is shipped randomly

Please Note

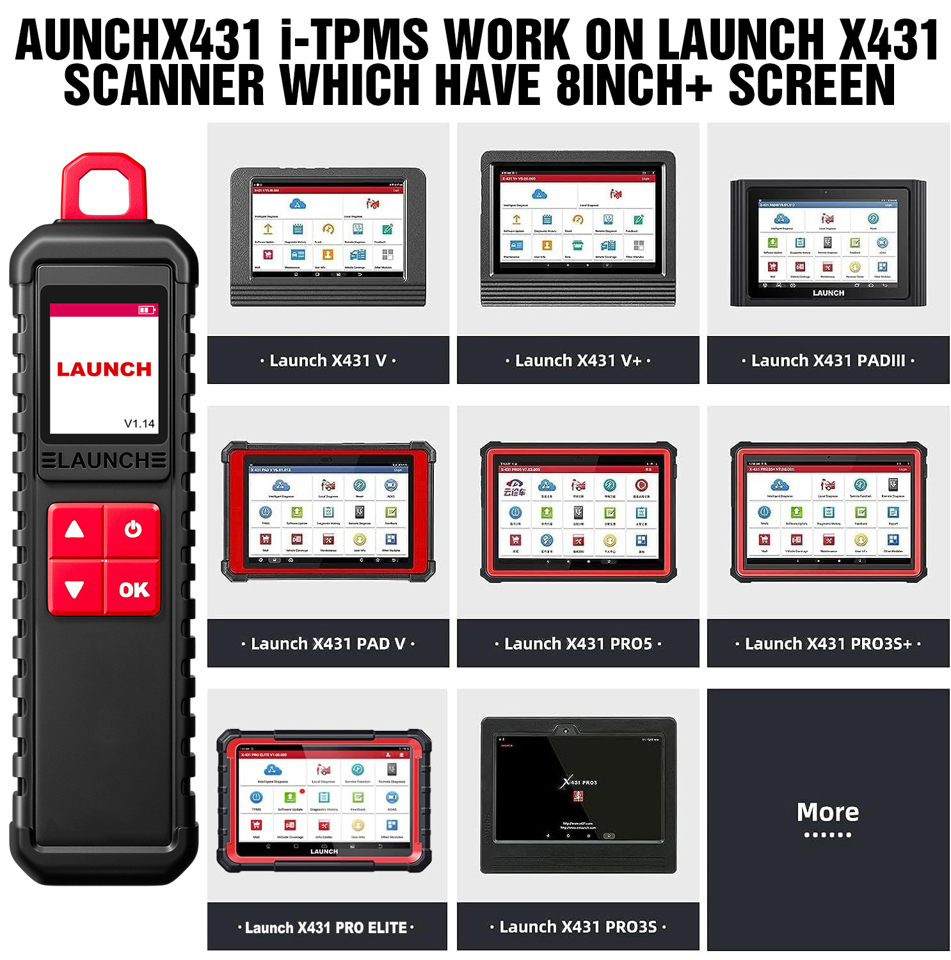

X431 I-TPMS needs to be equipped with X431 Serial to diagnose / activate / relearn / program LAUNCH sensorX431 Serial Including CRP919E BT X431 PRO V5.0 X431 PRO TT X431 PRO3S+ V5.0 X431 PRO3 ACE X431 PRO3S+ ELITE X431 PAD CV ELITE X431 V X431 V+ X431 PRO3S+ X431 PROS X431 PAD V X431 PAD III X431 PAD VII ect

The key reason to Choose LAUNCH X431 TSGUN

1. 1.77 inch color screen2. Instantly read tire pressure tire temperature and battery status3. Diagnose tire pressure fault including read DTC clear DTC etc.4. Activate and match all 315MHz or 433MHz sensors5. Read copy and write the sensor ID quickly6. Reprogram LAUNCH sensors with unlimited times7. Built-in tire pressure learning instruction makes operation more easy8. Cover 98% global vehicles with tire pressure system9. Compatible modules X431 V/V+/PRO3S/PRO3S+/PAD V/PAD II/PAD VIIect10. Support Language English French Spanish German Russian Korean Japanese Portuguese Italian Polish Dutch Hungarian Finnish Simplified Czech Turkish Greek Arabic Danish Persian Romanian Serbian Swedish Chinese Traditional

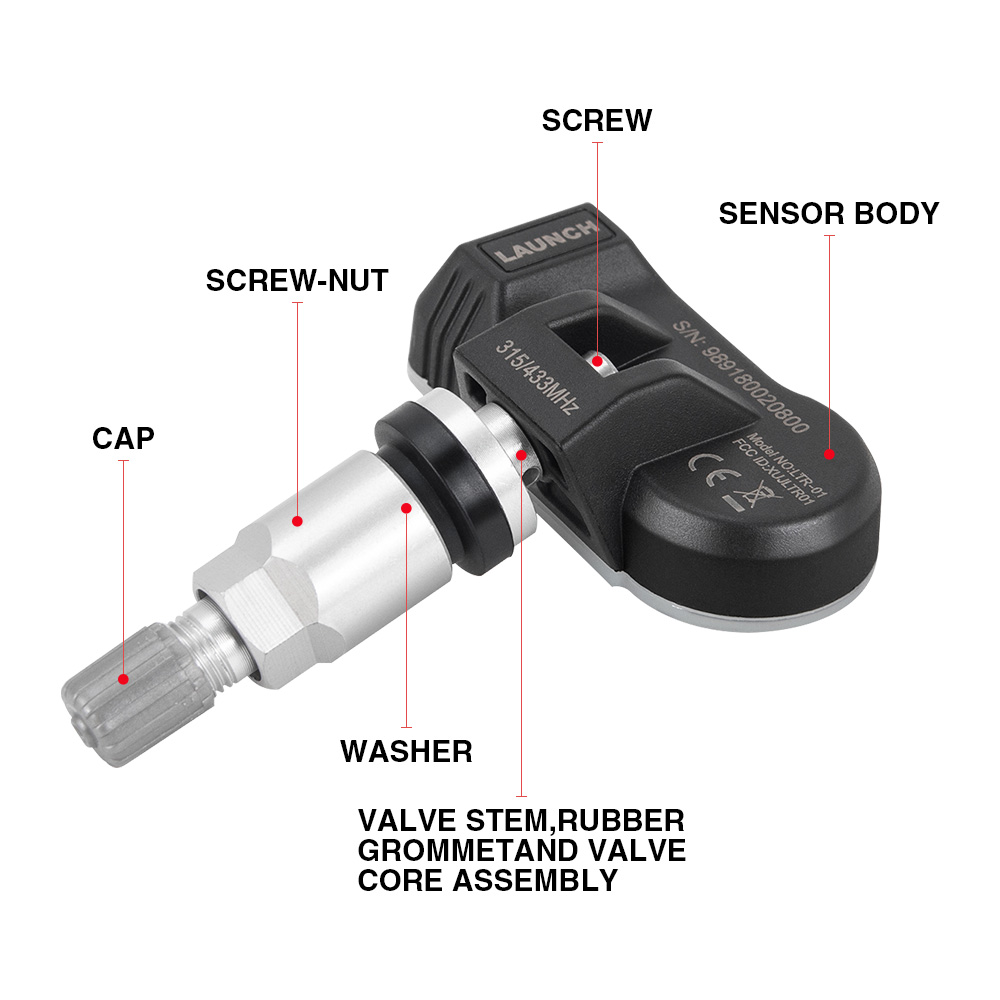

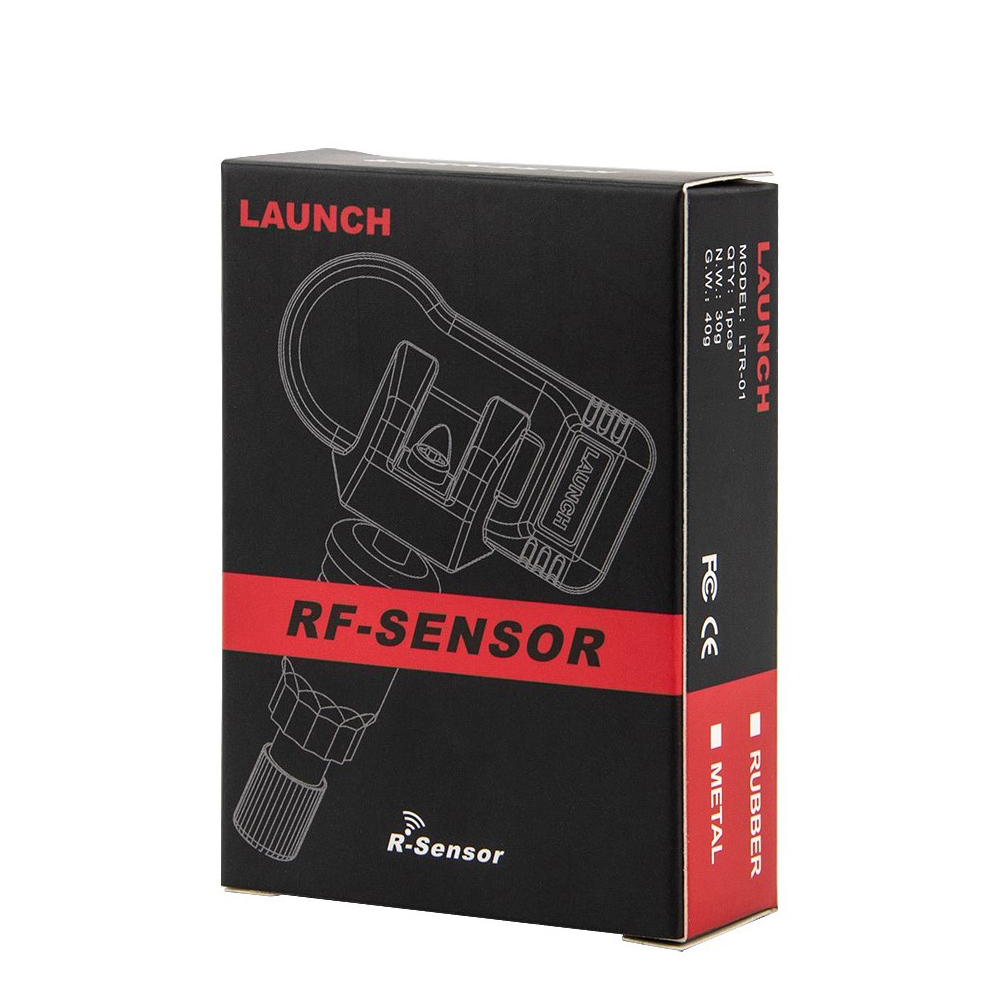

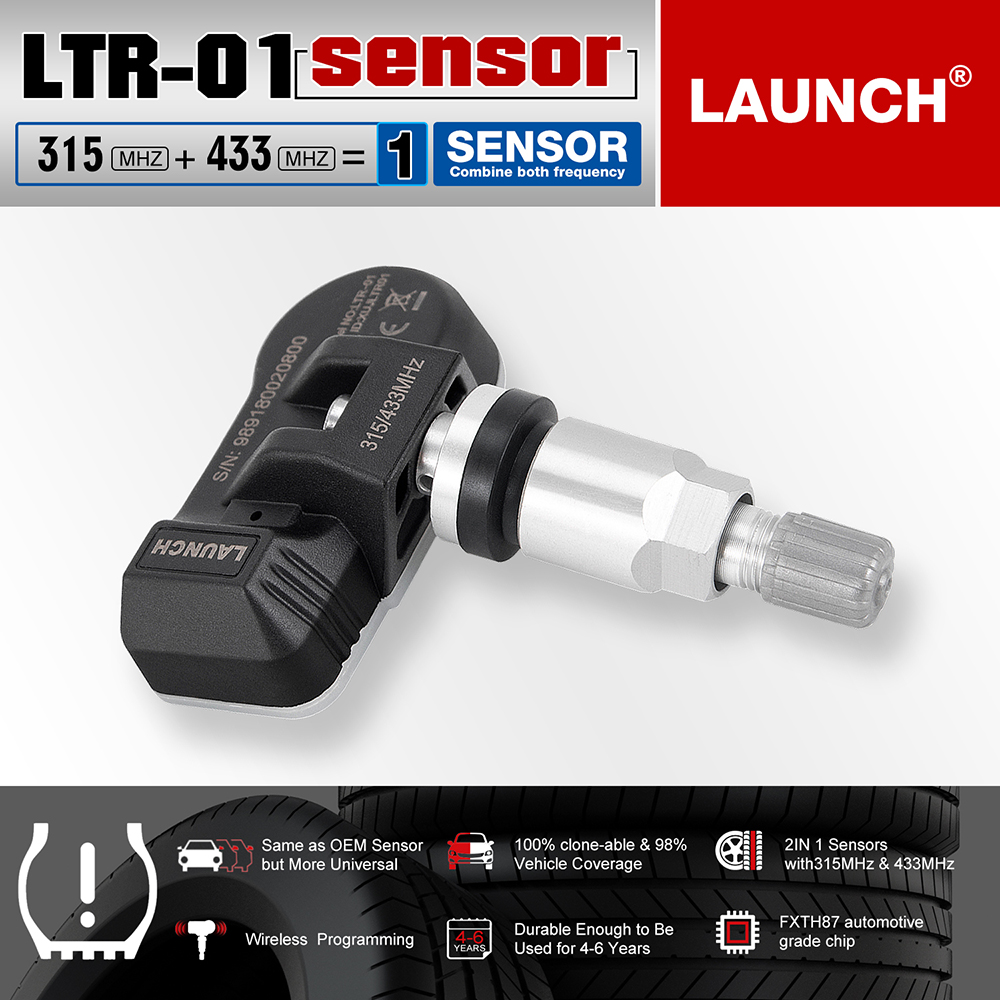

Why Choose LAUNCH X431 RF-Sensor

1.2 in 1 RF-Sensor Including 315Mhz /433Mhz frequency2. Cover 98% global vehicles with tire pressure system 3. Obtaining certificationEU CE UK UKCA US FCC China CCC4. Adapt to various environments support - 40 ~125 temperature4. Performance comparable to the original factory (support 315MHz 433MHz) unlimited reprogramming times Over-the-air wireless programming convenient and durable non-destructive installation 4.The High Precision Air Valve effectively prevents air leakage and ensures durability and stability5.The valve angle is flexible6.the volume of this produsct and the singal transmission are optimised7.Battery Life 4-6 years/10 thousands km 8. offer 2 years warranty

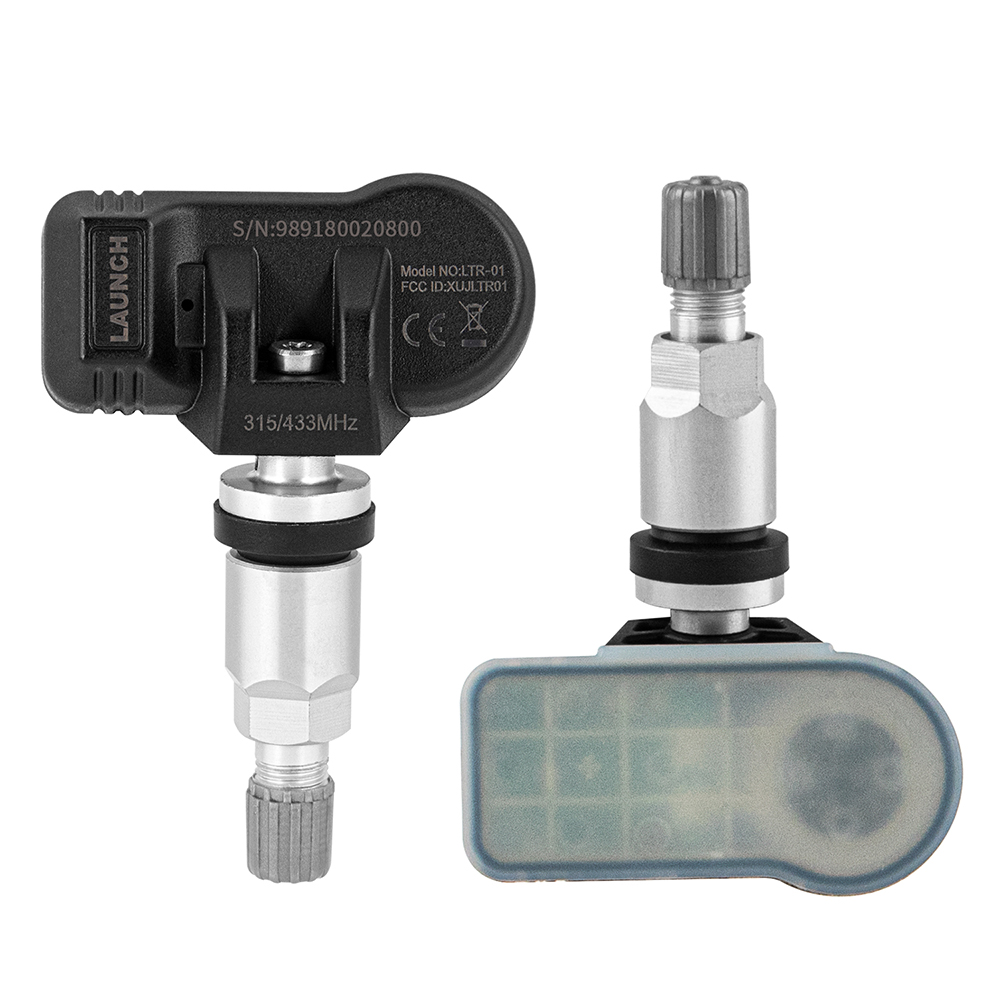

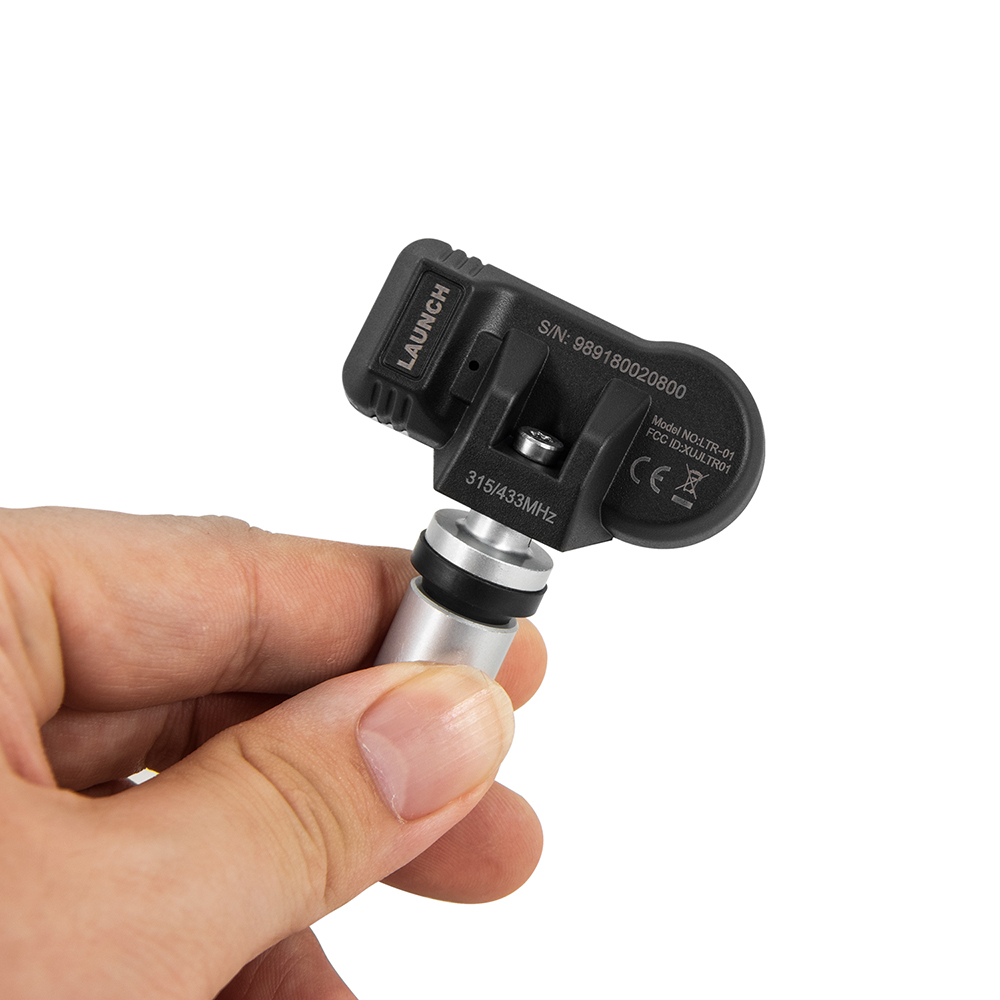

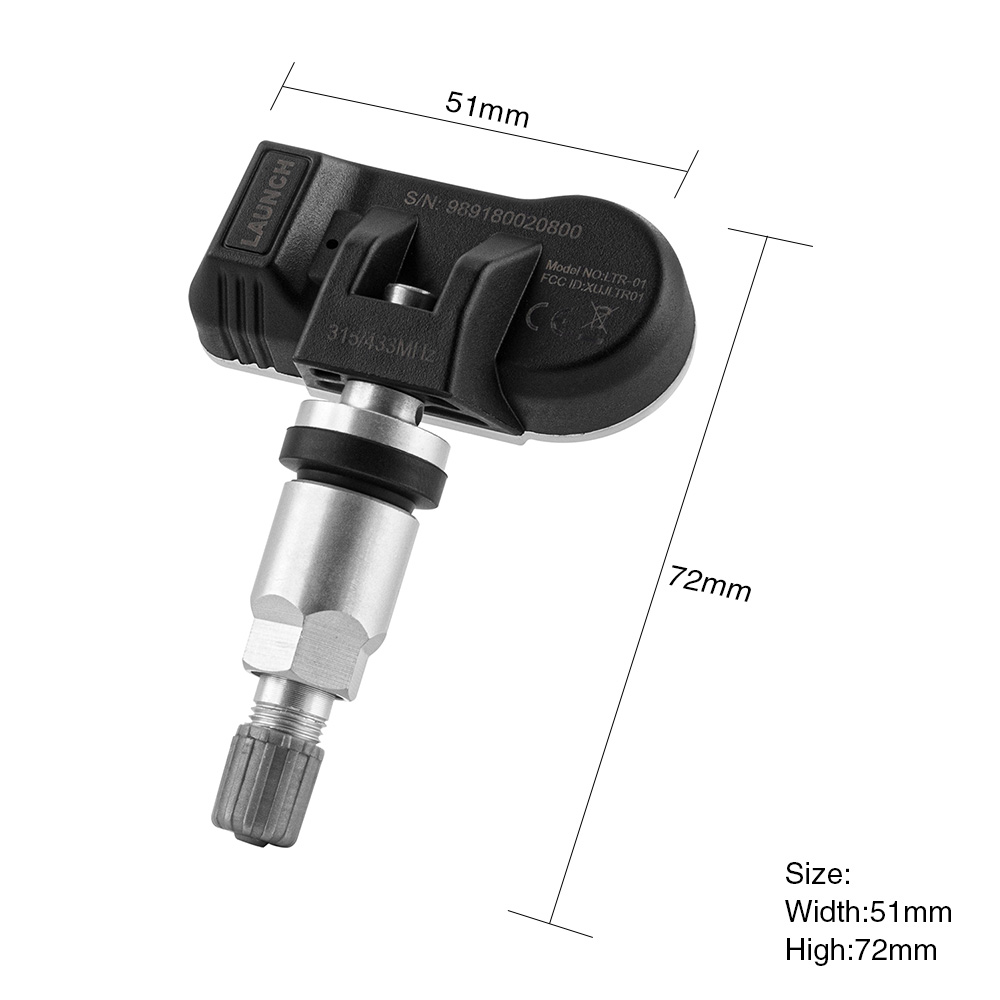

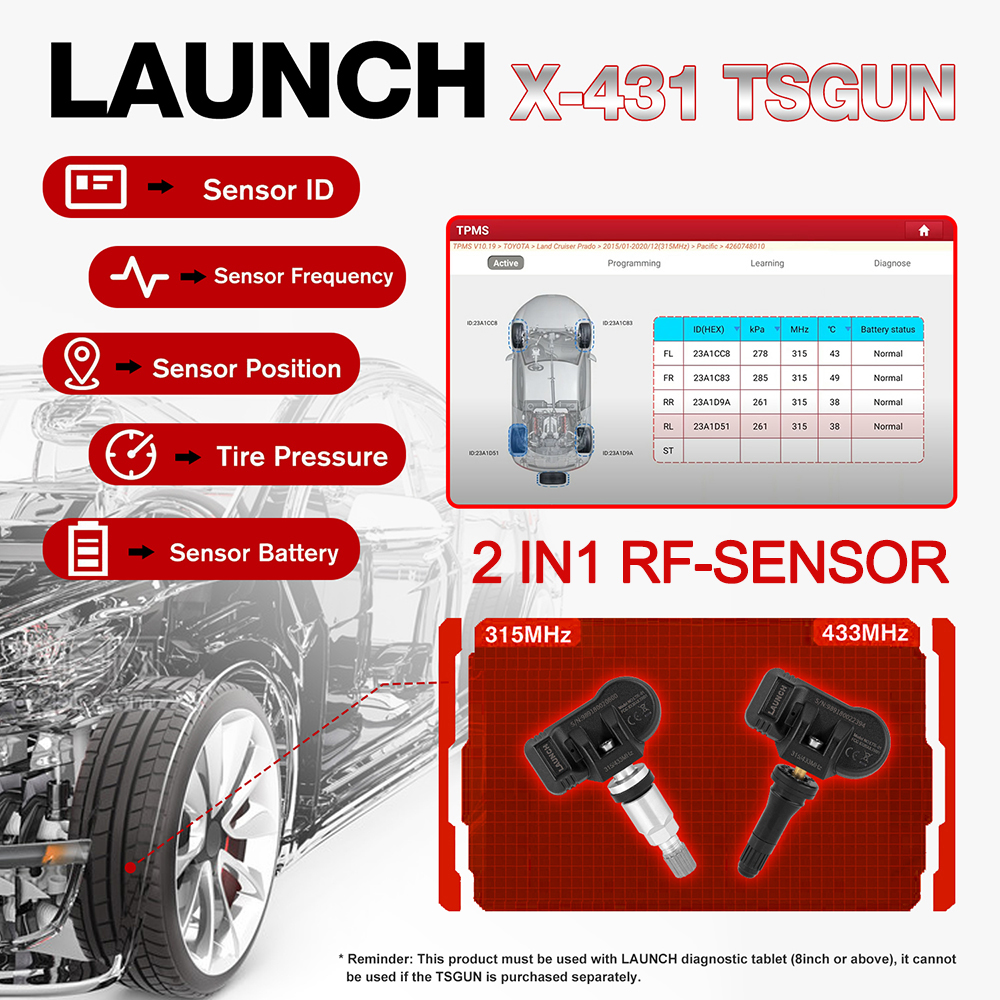

2 IN 1 RF-Sensor 315 MHZ+ 433 MHZ

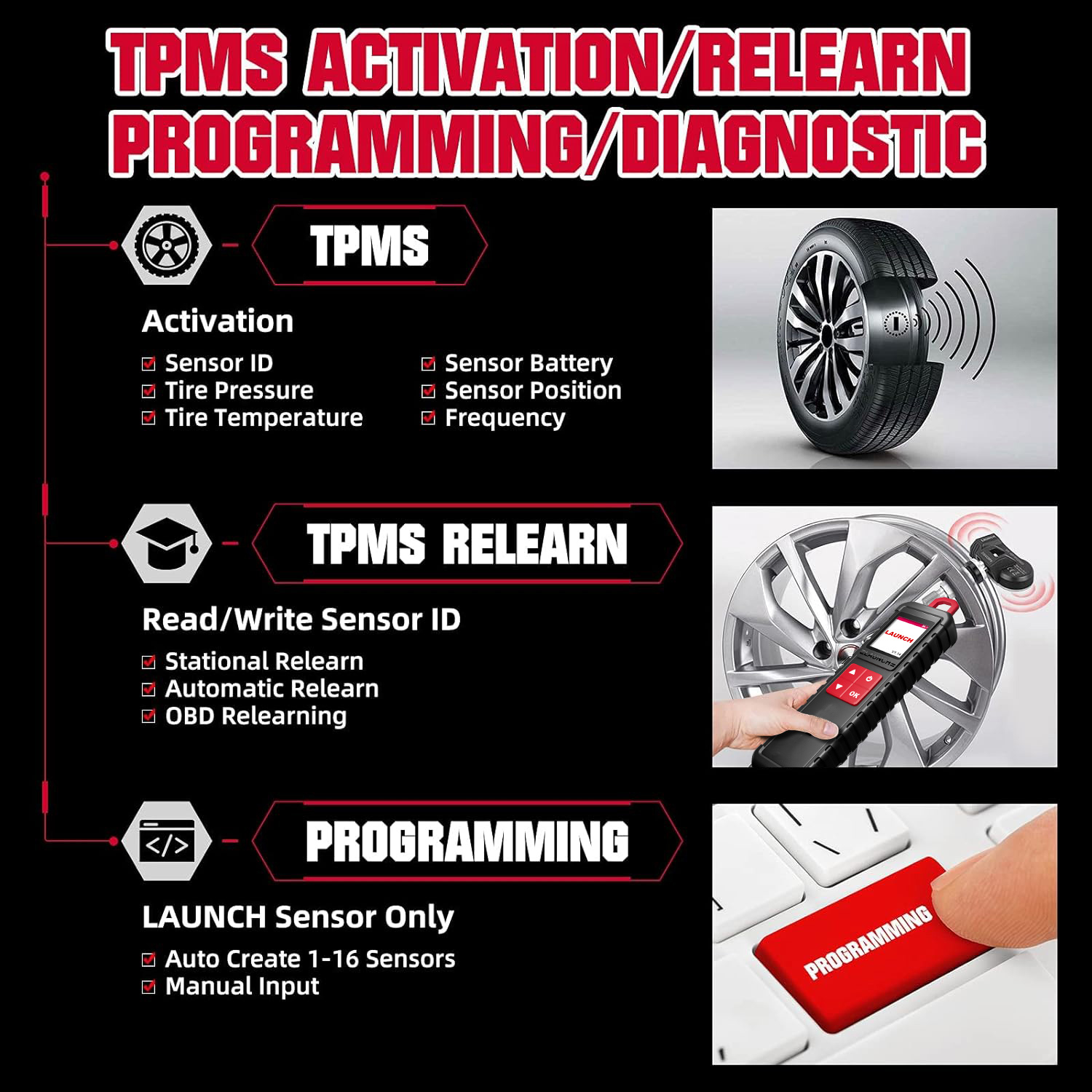

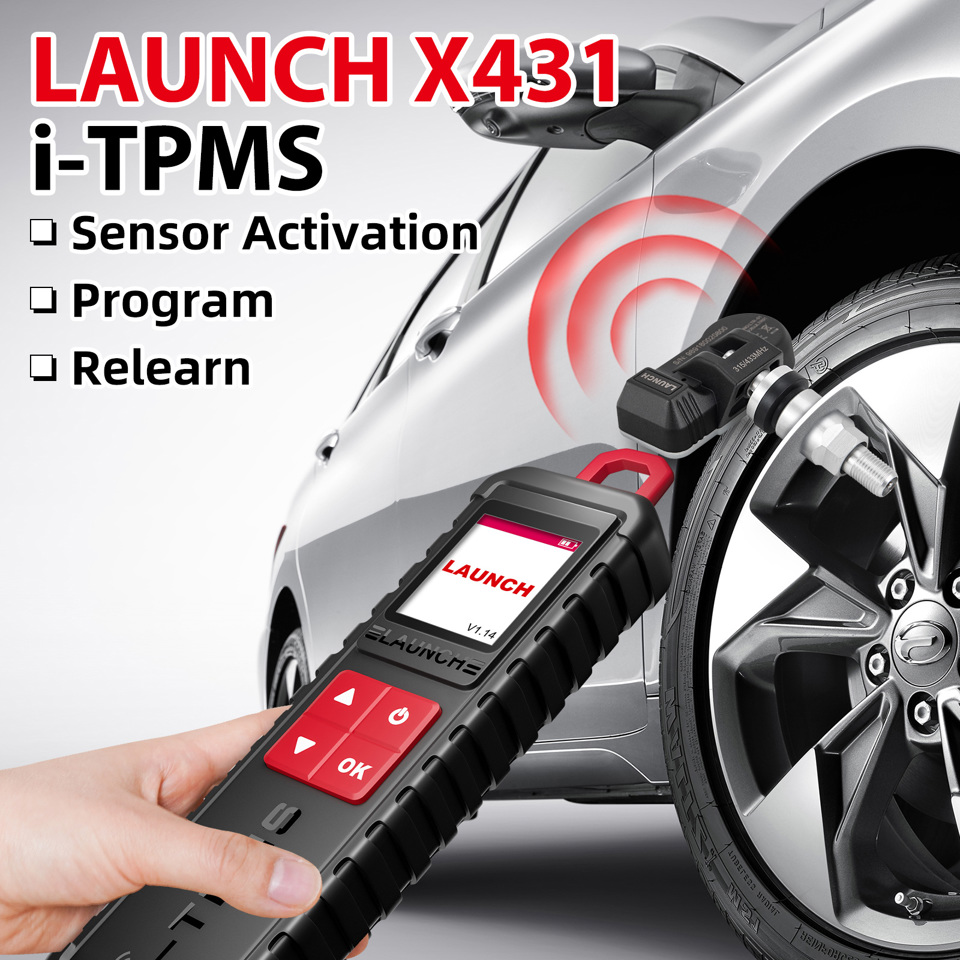

Activate Sensor

This function allows users to activate TPMS sensor to view sensor data such as sensor ID tire pressure tire frequency tire temperature and battery condition.

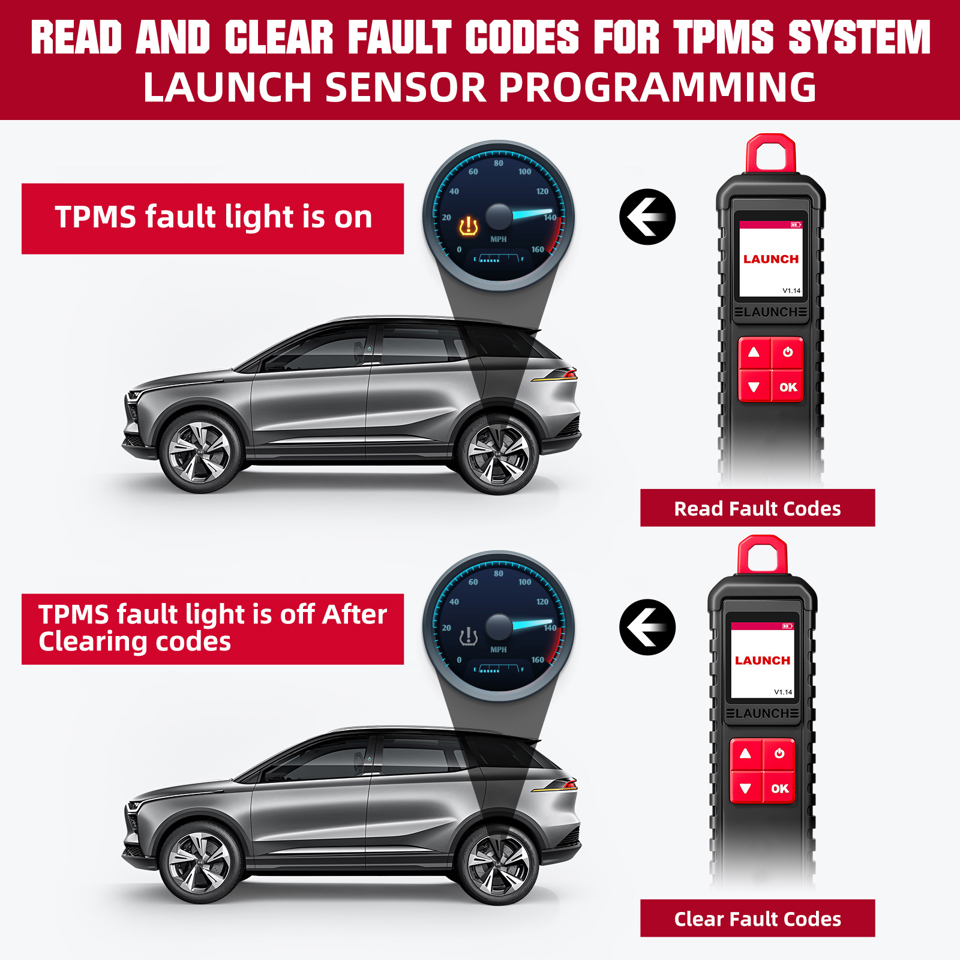

Diagnose tire pressure fault

Read and clear the fault code of the TPMS system

Program Sensor

This function allows users to program the sensor data to the L AUNCH-sensor and replace faulty sensor with low battery life or one that is not functioning.There are three options available for programming LAUNCH-sensorAuto Create Manual Create and Copy by Activation.(Note Do not place the device close to several sensors at the same time or the diagnostic tool will detect more sensors which may result in programming failure)

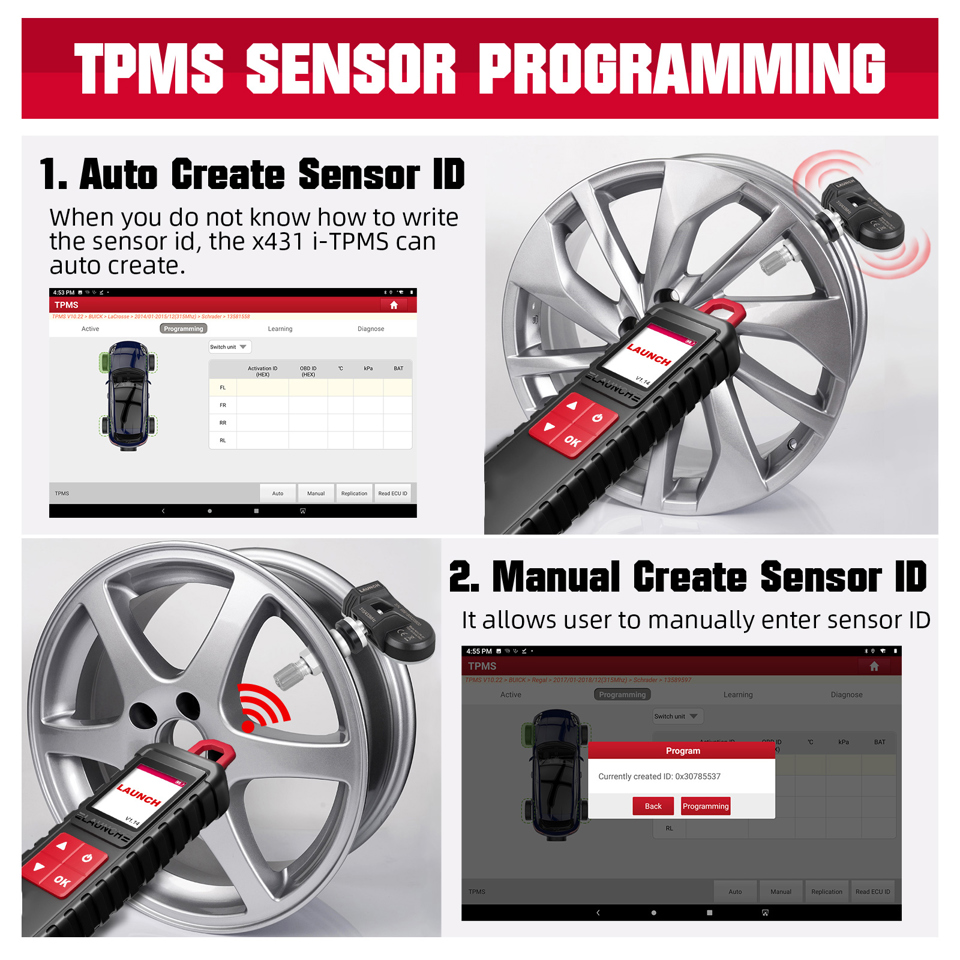

Method 1 - Auto Create

When the original sensor ID cannot be obtained this function can be used to program the LAUNCH sensor according to the ID randomly created by the test vehicle.

Method 2 - Manual Create

When the original sensor ID cannot be obtained this function can be used to program the LAUNCH sensor according to the ID randomly created by the test vehicle.

Method 3 - Copy By Activation

By first activating the original sensor data and then copying the activated sensor data into the LAUNCH sensor. Before using this method the original sensor data must be activated.

TPMS Relearn

The user can use this function to write the newly programmed sensor ID into the vehicle ECU for sensor identification. Only when the newly programmed sensor ID is different from the original sensor ID stored in the vehicle ECU the re-learning operation is required.There are three ways available for Relearn Static Learning Self- Learning and Relearn by OBD.

Method 1 - Static Learning

Static learning needs to put the vehicle in "learning mode" and then follow the learning steps prompted on the screen.

Method 2 - Self-Learning

For some vehicles the learning function can be completed by driving the vehicle self-learning.

Method 3- Relearn by OBD

This function allows the diagnostic tool to write the sensor ID to the TPMS module.To perform the OBD re-learning function first use the tire pressure tool to activate all four tire sensors. Then use the diagnostic equipment and its attached diagnostic connector and follow the on-screen instructions to complete the re-learning operation.

Easy to Binding TSGUN TPMS Wand ?

For initial use user needs to bind the X-431 TSGUN to the diagnostic tool1. Tap TPMS on the Job menu of the diagnostic tool.2. Tap Bind X-431 TSGUN to enter.3. Tap Bind the binding interface will pop up.4. Enter the required information. After inputting tap Bind. It will be displayed in the Bound list automatically .( Repeat steps 3~4 to bind multiple X-431 TSGUN devices to the diagnostic tool.)

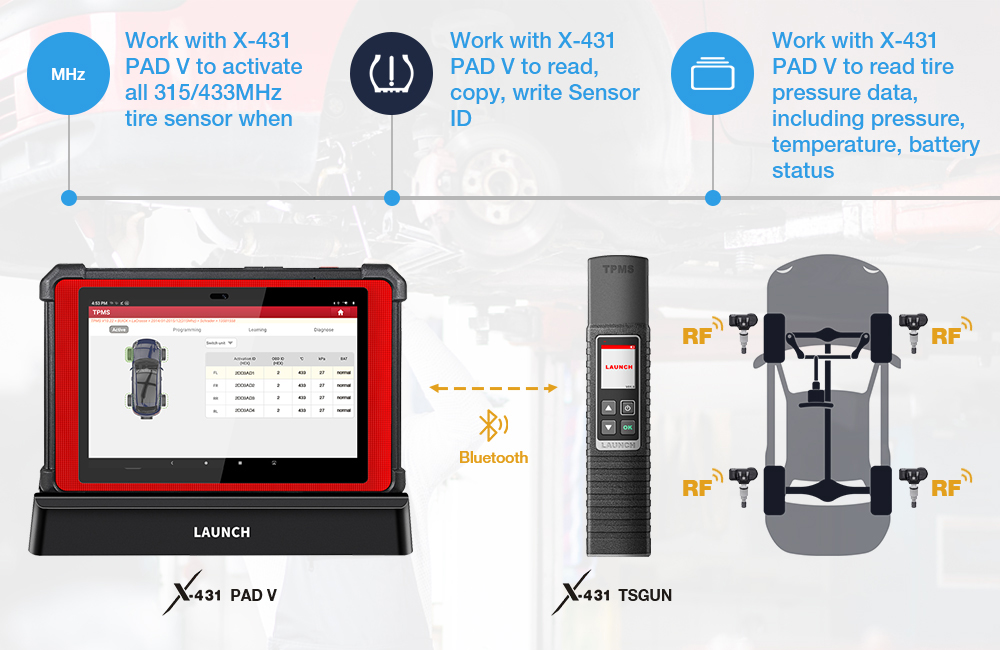

How does LAUNCH X-431 TSGUN Work ?

Compatiable Vehicle List

For ABARTHfor ACURA for ALFA ROMEO for ASTON-MARTIN for AUDI for ALPINA for BAIC for BAOJUN for BENTLEYfor BMW for BORGWARD for BUGATTIfor BUICK for BYD for CADILLAC for CHANGAN for CHERY for CHEVROLET for CHRYSLER for CITROEN for CMC for DACIA for DAEWOO for DFM for DODGE for FAW for FERRARI for GEELY for GMC for GREAT WALL for HAVAL for HAIMA for HOLDEN for HONDA for HSV for HUMMER for HYUNDAI forINFINITI for ISUZU for JAC for JAGUAR for JEEP for KIA for LADA for LAM BORGH-INI for LANCIA for LANDROVER for LEXUS for LIFAN for LINCOLN for LOTUS for LUXGEN for MAHINDRA for MAN for MASERATI for MAYBACH for MAXUS for MAZDA for MCLAREN for MERCEDES for MG for MINI for MITSUBISHI for NISSAN for OPEL for PAGANI for PEUGEOT For PORSCHE for QOROS for RENAULTfor ROLLSROYCE for SAAB for SCION for SEAT for SKODA for SMART for SSANGYONG for SUBARU for SUZUKI for SGMW for TESLA for SMART for SSANGYONG for SUBARU TOYOTA for TRAUM for VAUXHALL for VOLKSWA-GEN for VOLVO for ZOTYEfor FIAT for FORD for FOTON for CHRYSLER for GMC for DFM for CADILLAC for CHERY for CHEVROLET for DODGEfor FAW for FERRARI for JAC for JAGURE
