OSSC Upscaler HDMI Адаптер для ретро консолей

OSSC Upscaler HDMI Open Source Scan Converter Adapter Top Version for PS2 SEGA Saturn Nintendo 64 PC Engine Retro Game Console

Describe:

Introduction The Open Source Scan Converter is a low-latency video digitizer and scan converter primarily used for connecting retro video game consoles and home computers to modern monitors.

It converts an analog RGB or component video signal to a digital format, doubling (or tripling) the scan lines of a single frame if necessary, to produce a valid pattern for a digital TV or monitor.

If you need an A/V to HDMI compatible converter for your gaming console, choose the DGETG 2x A/V Converter The DGETG 2x A/V Converter is the highest quality A/V box available.

Package Contents :

1* HDMI compatible converter

1* Infrared remote control

1+4* Power supply with four plug adapters US UK AU EU

1* Multi-language user manual

mproved Hardware Compatibility:

Version 1.8 includes revisions to the hardware to improve compatibility, especially in terms of sync/mode detection.

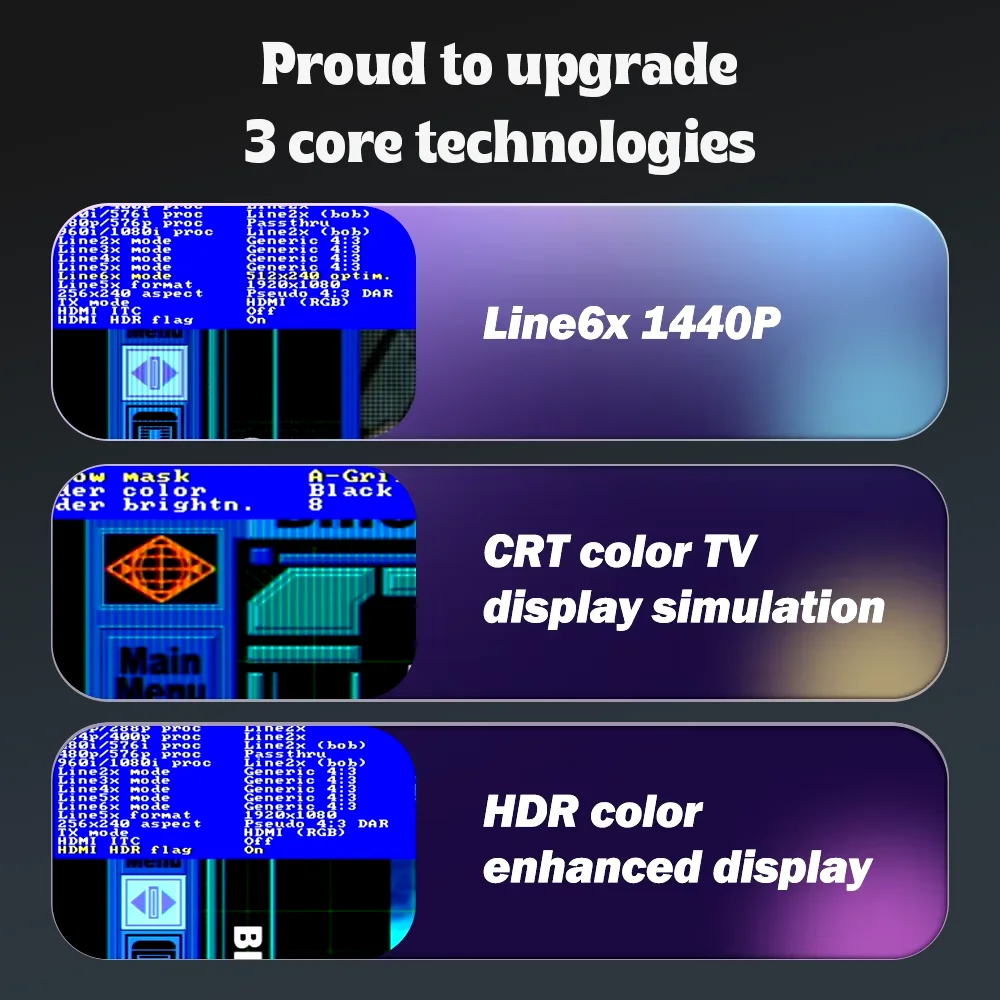

Shadow Mask CRT Simulation:

This feature emulates the shadow mask effect found behind traditional CRT screens, offering users a more authentic retro gaming experience.

HDR Mode:

The addition of HDR (High Dynamic Range) mode provides a wider color range and contrast, making the images look more vivid and lifelike.

1440p Pixel Repetition Mode:

This feature allows the OSSC to enhance image quality when outputting at 1440p resolution by repeating pixels, which is useful for users who want better image quality on high-resolution displays.

Improved Power/Ground Supply Distribution:

With a new 4-layer PCB design, improves the distribution of power and ground, contributing to overall performance and stability.

This includes over-voltage protection, an improved audio switching switch, and reduced temperature and power consumption. These improvements have been carried over to version Top.

Feature

-Detection and digitization of various analog SDTV/EDTV/HDTV/PC modes

-Line double support for 240p, 480i, 288p, 576i, 384p, 480p, 576p

-Line3x/4x/5x support for 240p/288p with different sampling modes

-Very low latency (less than 2 input scanlines), Don't worry about blurry graphics, interlaced jams, and higher input lags, and no

painstaking upgrades.

-Fast "deinterlace" for 480i/576i and 960i/1080i

-Fast recover from input video mode change (e.g. 240p<->480i)

-All video processing done in RGB domain - no conversion to YCbCr

-Video and sync LPF for less-than optimal input signals

-Multiple inputs supporting various formats (see below)

-Full-range 24-bit RGB output through DVI/HDMI

-Emulated scanlines with configurable strength and position

-Configurable mask for overscan area

-Selectable sampling configuration for 480p input: DTV-480p or VGA 640x480

-Selectable CSC configuration for YPbPr source: Rec. 601 or Rec. 70

Excellent picture and sound quality on a HDMI PC monitor or TV

-No blurry graphics, interlaced jams, and higher input lags, and no painstaking upgrades. Convert VGA to DVI /HDMI. Connect Dreamcast directly to the unit and enjoy HDMI processing for all games.

Process (line doubles) retro game with no input delay

-Support for 240p, 480i, 288p, 576i, 384p, 480p, 576p. Unlike other scalers, such as the XRGB Mini, OSSC works on a single scan line instead of one frame at a time, which means there is no input delay. Convert SCART and Component to DVI / HDMI.

Eliminates ugly deinterlacing artefacts and bad scaling

When connects retro consoles to your TV, this product converts the image into a 480p or 720p (where compatible) image that is correctly displayed and processed. EVERY special effect, from 240p drop shadows to striped sprites, is rendered correctly.

Converts SCART and Component to HDMI

For example, feed in a 480p component video signal from a Wii and get out a perfectly processed 480p HDMI or DVI (with a simple adapter) image. The quality is flawless!

Convert VGA to HDMI

For example, connect a Dreamcast directly to the unit and enjoy HDMI processing of all your games, not just those that support 480p.

Convert analogue audio to digital HDMI

Analogue audio from your retro games console will be converted to digital audio and injected into the HDMI/DVI output (requires compatible TV, processor or AV receiver. Analogue audio output is still available for setups where this is required).

Could be used in almost all over the world

-Voltage AC 110V-220V.Go with plug adapters for USA, UK, Australia and Europe.

Its user manual is in multi language. Includes English, German, French, Italian, Spanish and Japan.

Easy to use

-Plug and play. Go with very detail user manual and we provide technical support and professional customer service. Worry free to buy !

Variety settings available in the remote controller, satisfy need of game players at all levels.

Supported Inputs/Outputs resolutions

240p/288p -> 480p/576p or 720p line triple (compatible displays only)

240p/288p -> 1280×960, 1280×1152, 1080p, 1600×1200 line quadruple/quintuple (compatible displays only)

25Khz medium-res modes -> 480p

480i/576i -> 480p/576p or pass-through

480p -> pass-through or 960p line-double (compatible displays only)

all other 31khz resolutions passed through

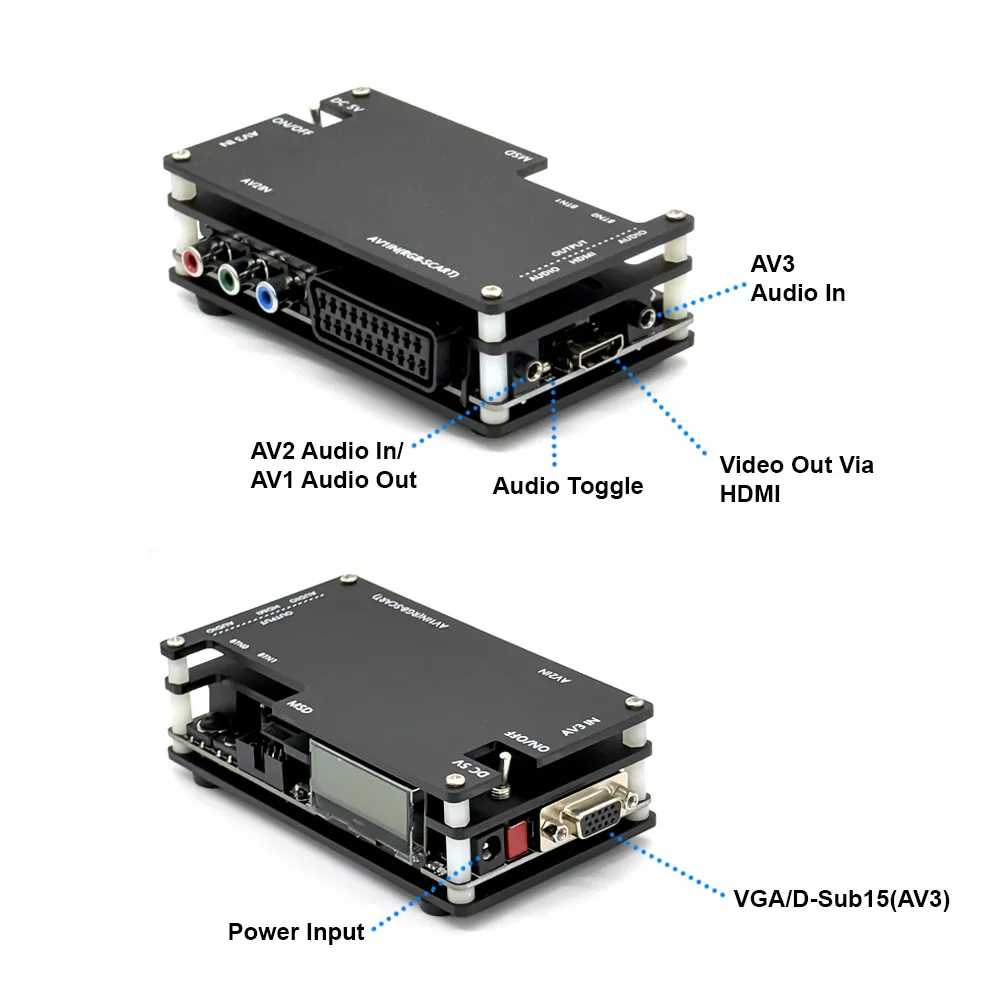

Inputs

1 X SCART Supports RGBs (clean csync, cvideo sync, luma sync), RGsB, Ypbpr

1 X Component video Supports Ypbpr and RGsB signals

1 X D-SUB15 (VGA) Supports RGBHV, RGBs, RGsB, Ypbpr

2 x 3.5mm analogue audio Supports all analogue audio. Input 1 can be toggled between output (from AV1/SCART) or input

Outputs

1 X HDMI or DVI-D (with adapter) (digital only,including audio). Full-range 24-bit RGB output through DVI/HDMI

1 X Analogue audio 3.5mm (input/output toggle)

Support Console

Retro home consoles

For Atari 2600

For Atari 5200

For Atari Jaguar

For Microsoft Xbox

For Microsoft Xbox 360

For NEC PC Engine

For Nintendo 64

For Nintendo NES / Famicom

For Nintendo Gamecube

For Nintendo Super NES / Super Famicom

For Nintendo Wii

For Sega Dreamcast

For Sega Genesis / Mega Drive

For Sega Master System

For Sega Saturn

For SNK Neo Geo

For Sony PlayStation

For Sony PlayStation 2

For Sony PlayStation Portable

Computers

For Atari 8-bit family

For Commodore Amiga

For Commodore 64

For MGT Sam Coupé

For MSX

For Sinclair ZX Spectrum

For Arcade Boards

For Capcom CPS-II

For Data East Caveman Ninja Hardware

For Irem M92

For Nintendo Playchoice 10

For Namco Gaplus

For Sega Model 2

For Seibu SPI

For SNK Hal 21

For SNK Neo Geo MVS

For Sony ZN-1

For Taito F2

For Taito FX-1B

For Taito F3

For Toaplan V1

For Toaplan V2

Notes:

AV video and S-Videoare NOT supported and require an adapter/ transcoder
